How to create a MySQL based table with wpDataTables

Video versionA video overview of MySQL-based wpDataTables

wpDataTable MySQL integrationCreate a table in MySQL with WordPress

Please note: Using this plugin feature requires at least a basic knowledge of SQL. It is assumed that you can create the table in some MySQL data manager (e.g., PHPMyAdmin, MySQL Workbench), and prepare a SQL query that will return the data you need. If you do not know how to use MySQL, refer to the “Create a MySQL-query-based table by generating a query to MySQL database” section. It will explain how to create complete tables or MySQL queries without this basic knowledge. Please be advised that preparing MySQL queries for you is not included in the plugin support.

MySQL is a powerful, yet free, SQL-based database engine. It allows you to create both small and very large databases, and to create, read, and edit data in these databases quickly and effectively. That’s why it has been the #1 database engine in the web for many years. Even WordPress runs on MySQL.

wpDataTables is deeply integrated with the MySQL engine. It allows you to display results of SQL query in a table, you can use MySQL server to do searches/filters/sorting/pagination for large datasets, it allows front-end (and back-end) editing of MySQL tables, creating MySQL tables from back-end, importing CSV or Excel to editable MySQL tables, generating SQL queries with visual constructor, and much more.

Whenever your data set grows to more than a few hundred rows, and when you need better performance, MySQL-based wpDataTables is the way to go.

In this tutorial we will demonstrate how to create a wpDataTable based on a query to a MySQL table.

You can download the SQL dump for this sample “dummy employees” table from this link and import it to your MySQL server using PHPMyAdmin or other software, to repeat the tutorial steps.

Let’s create the table first, as demonstrated in the following step-by-step tutorial.

When working with SQL query based tables, please note:

  1. Our logic is based on a PHP SQL parser which has full support for the SQL dialect for the following statement types:
    Some of them like DROP and DELETE, though, are disabled for security reasons.
  2. Using variables ( @ ), stored procedures and nested queries is not supported, but you can prepare a MySQL view (which will return the data you need); call it “view1” for example, and then build a wpDataTable based on a simple query like “SELECT * FROM view1”.
  3. For MySQL engine we are dynamically adding the accent grave ( ` ), so there’s no need to use it around the table name in the query.

Instructions to create the tableA step-by-step guide on creating MySQL-based tables

Displaying large MySQL tables in WordPress with wpDataTables

The first step for creating a MySQL-based wpDataTable is to prepare the data on the MySQL side.

We will start by assuming that you will use the same data set as we did in this example, and import the data via PHPMyAdmin (since almost every host has this tool pre-installed); but this is not mandatory. You can also prepare the structure and fill in the data from PHPMyAdmin, or from any other software.

So, first download the SQL dump from this link.

Now, go to your PHPMyAdmin, choose the DB that wpDataTables is configured to use, open the “import” tab, click “browse files” and open the SQL dump file that you downloaded.

Then, click “Go” and PHPMyAdmin will import the dump and create a table in your MySQL database.

Creating MySQL based tables

You can click on this table in the database browser on the left to review the results.

Next, we need to prepare a query that will return the data we need in our table. In this case, it will be simple: “SELECT * FROM dummy_employees“. You can try it in “SQL” PHPMyAdmin tab to make sure that it returns the data you need.

Such a simple SQL query is used here just for demo purposes. You can paste more complicated queries with joins and conditions as well.

Create the wpDataTable and paste the query

Now that the data is prepared on the MySQL server side, we need to create a wpDataTable to display this data.

Create data table from source

1. Go to wpDataTables -> Create a Table, and choose the Create a table linked to an existing data source option.

2. Provide a name for the table in the Table Title input; it will help you to identify this table later.
3. Select SQL query in the Input data source type select-box.
4. Paste the SQL query we prepared in the step 1 (SELECT * FROM dummy_employees) in the SQL editor that appears in SQL query input.
5. Click “Save Changes” so wpDataTables will read the table structure, and initialize the columns’ metadata.

(Optional) - Define additional table and column settings

Once the table structure is read, and the column metadata is initialized by wpDataTables, you might elect to re-define the default settings.

If this is the case, let’s change some general settings for the table.

1. Click on the “Display” tab.
2. Check the “Limit table width” checkbox.
3. Check the “Word wrap” checkbox.
4. Click on the “Save Changes” button to save the changes.

Now, let’s change some Column settings. For example, we can hide ID column.
There are 2 ways to do this:

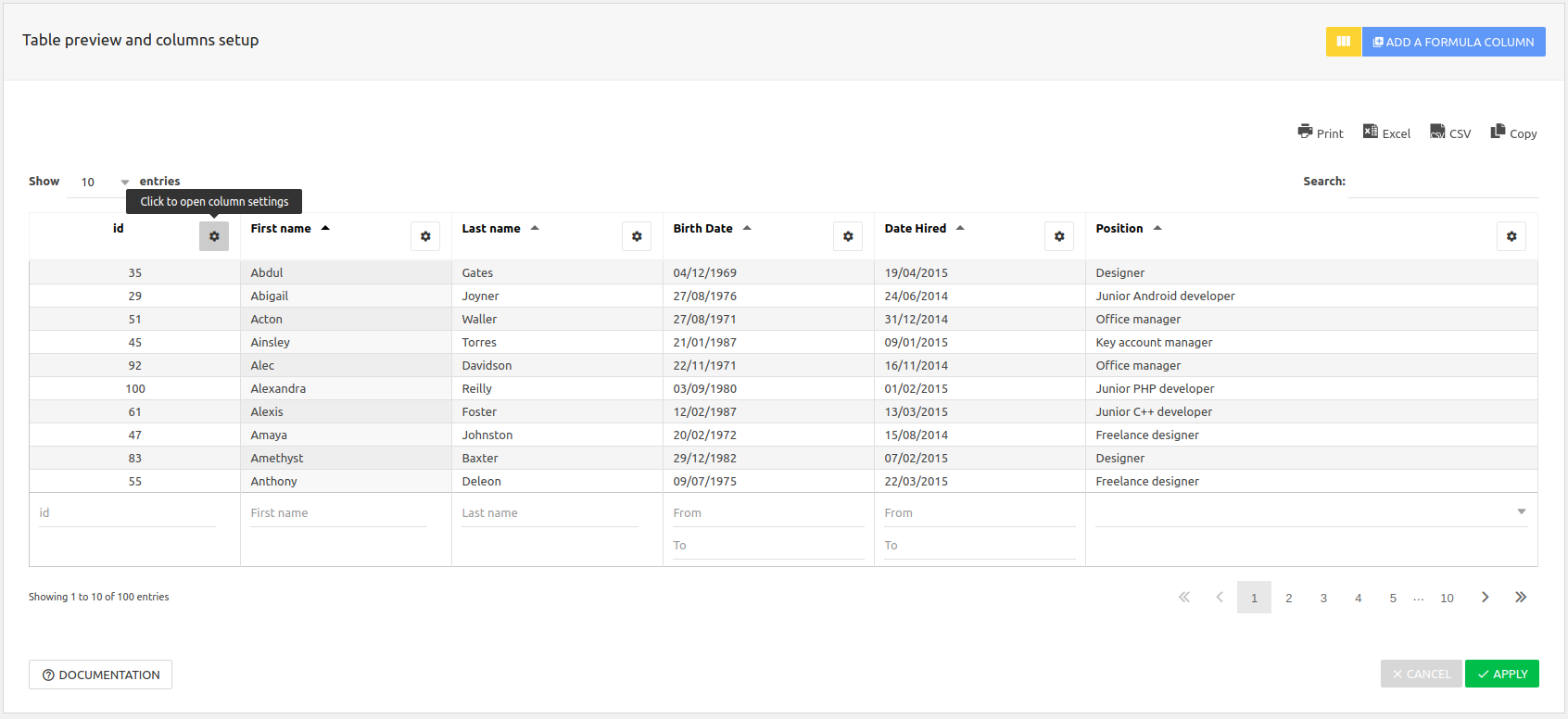

1. By clicking on the Column settings button

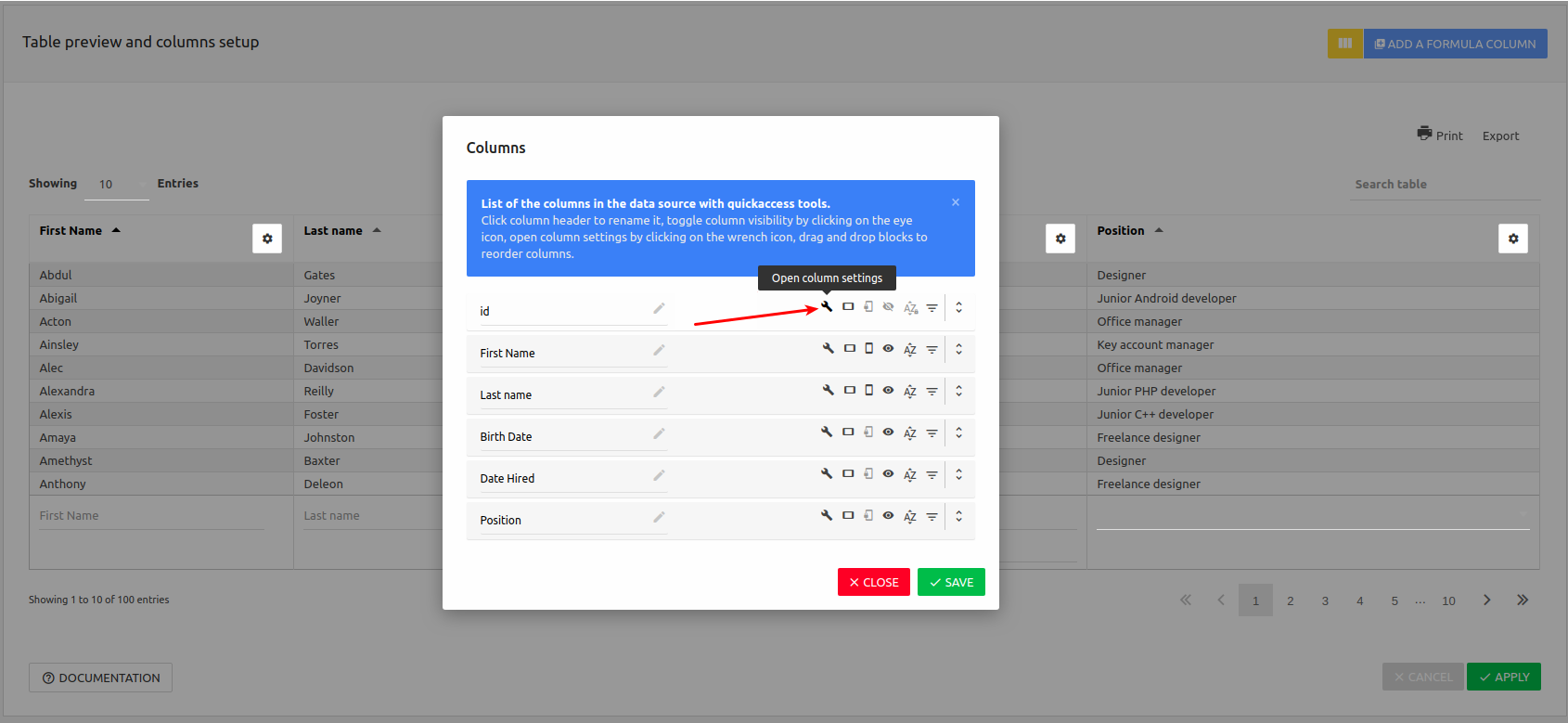

2. Or, by clicking on the ‘Column List‘ button above the table.
In this dialog you can quickly rename, reorder, or toggle visibility for columns.

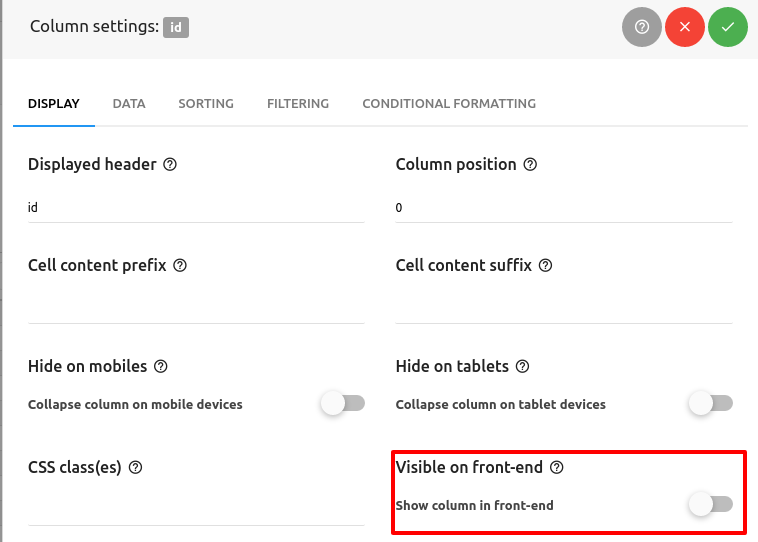

Now, uncheck the “Visible on front-end” checkbox.

Once the setup is done, click “Apply” again to store the changes in wpDataTables. You can also see the table changes in the live preview to see how the table will look in the front-end.

You can dynamically filter or edit the table by using placeholders as predefined filtering values or predefined editing values.

Insert the wpDataTable in WordPress post or page

wpDataTable shortcode

When you’ve finished preparing your MySQL-based wpDataTable, you need to insert it to your post or page.

Create or open a WordPress post or page, place the cursor in the position where you would like to insert your table, click the “Insert a wpDataTable” button in the MCE editor panel, and choose the MySQL-based table that you prepared.

Or, you can copy the wpDataTable shortcode that the wpDataTables edit page shows, and paste it manually where you need it.

If you are using Gutenberg editor, Elementor, or WPBakery page builder, you can check out the section for Adding wpDataTables shortcodes on the page.
